Small in size, big on performance
IP-Intercom Module im3
OverviewThe Intercom Module that fits (almost) anywhere
The world's smallest IP Intercom module
This Intercom module is small enough to fit in the palm of a hand, yet powerful enough to provide crystal clear audio quality. With its convenient size and cost-effectiveness, the world's smallest IP Intercom module is sure to revolutionize the way people communicate.
This device is incredibly compact and lightweight, making it easy to install in any space (only 24 x 54 x 84.5 mm). It is designed to provide high-quality audio and video communication in both indoor and outdoor settings. Additionally, it can be equipped with with a perfectly matching loudspeaker module for maximum convenience. The im3 comes with an amazing range of connectivity options for (inter)connecting various audio/video and control equipment.
This is im3 – the world’s smallest IP Intercom module.
- Crystal clear sound with up to 20 kHz speech quality and a power of up to 6.1 W thanks to the latest Smart Audio Amplifier technology
- Special audio enhancing functions (Intelligent Volume Control, background noise suppression) ensure outstanding speech intelligibility in any situation
- Natural hands-free communication with OpenDuplex®
- Easy installation through compact design and seamlessly attachable loudspeaker module
- Simple and fast connection of cables with pluggable spring-type terminals
- Flexible expansion with add-on equipment via USB interface
- 2 inputs for floating contacts and 1 relay output
- Extra-high volume capacity and outstanding speech intelligibility thanks to perfectly fitted loudspeaker module for im3
- Possibility to connect any other loudspeaker
- All connection ports arranged on same side for easy accessibility
- Camera module (cm1)
- Loudspeaker module (LSM)
- Loudspeaker (LS8, LS15, AL 10-16)
- Microphone (MIC 480)
- USB input/output module (EB1E1A)
- Expansion module (EB3E2A)
- PoE injector for local power supply (PA 25W POE-DC)
- IP secure connector, safety switch box
- Top-hat rail clamp (ET 901-HSH35)
- Induction loop kit (AFIL-USB)
- Status indication LED (LED3)
Compact Connectivity,
Endless Possibilities
Ethernet
USB
HS-Link

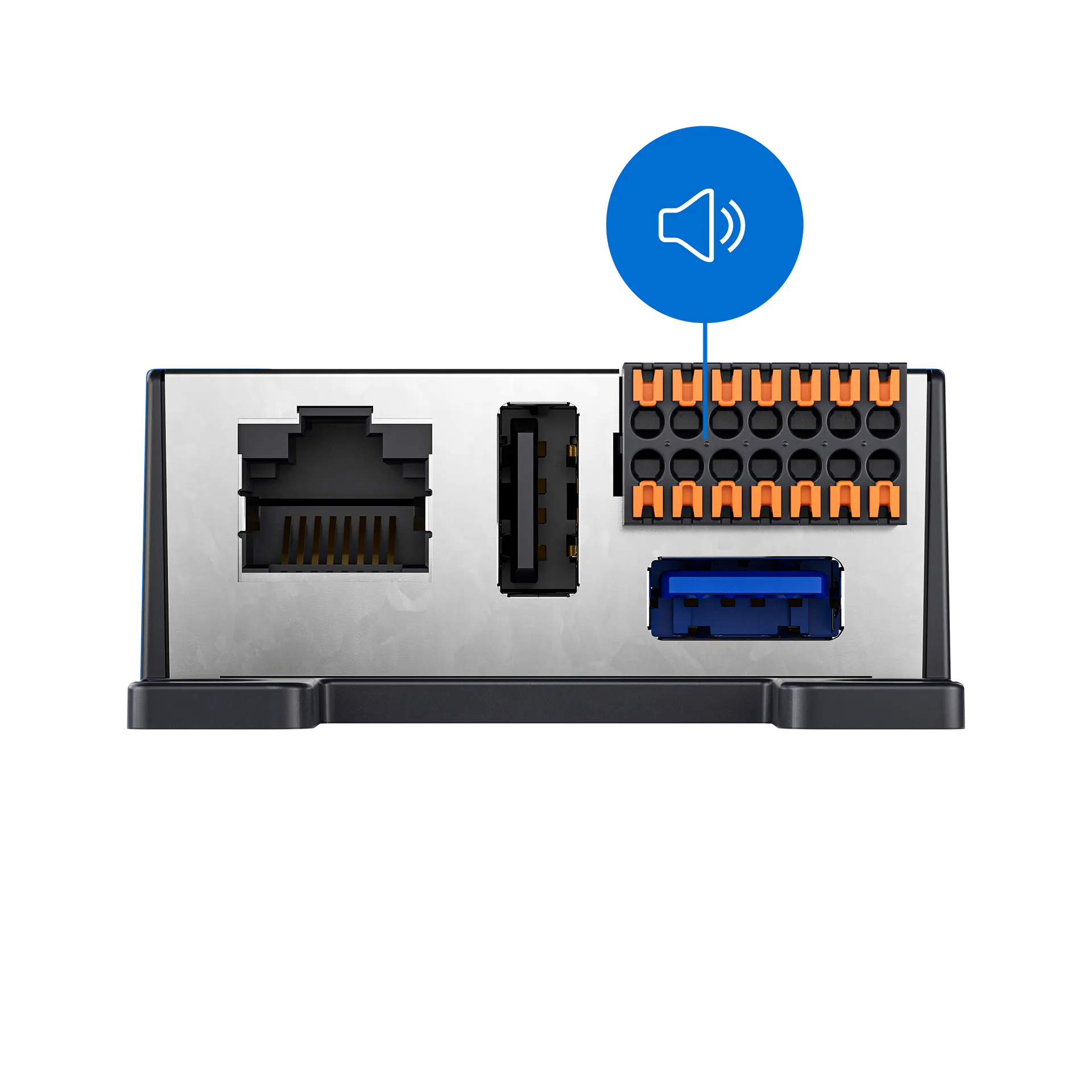

Audio Connections

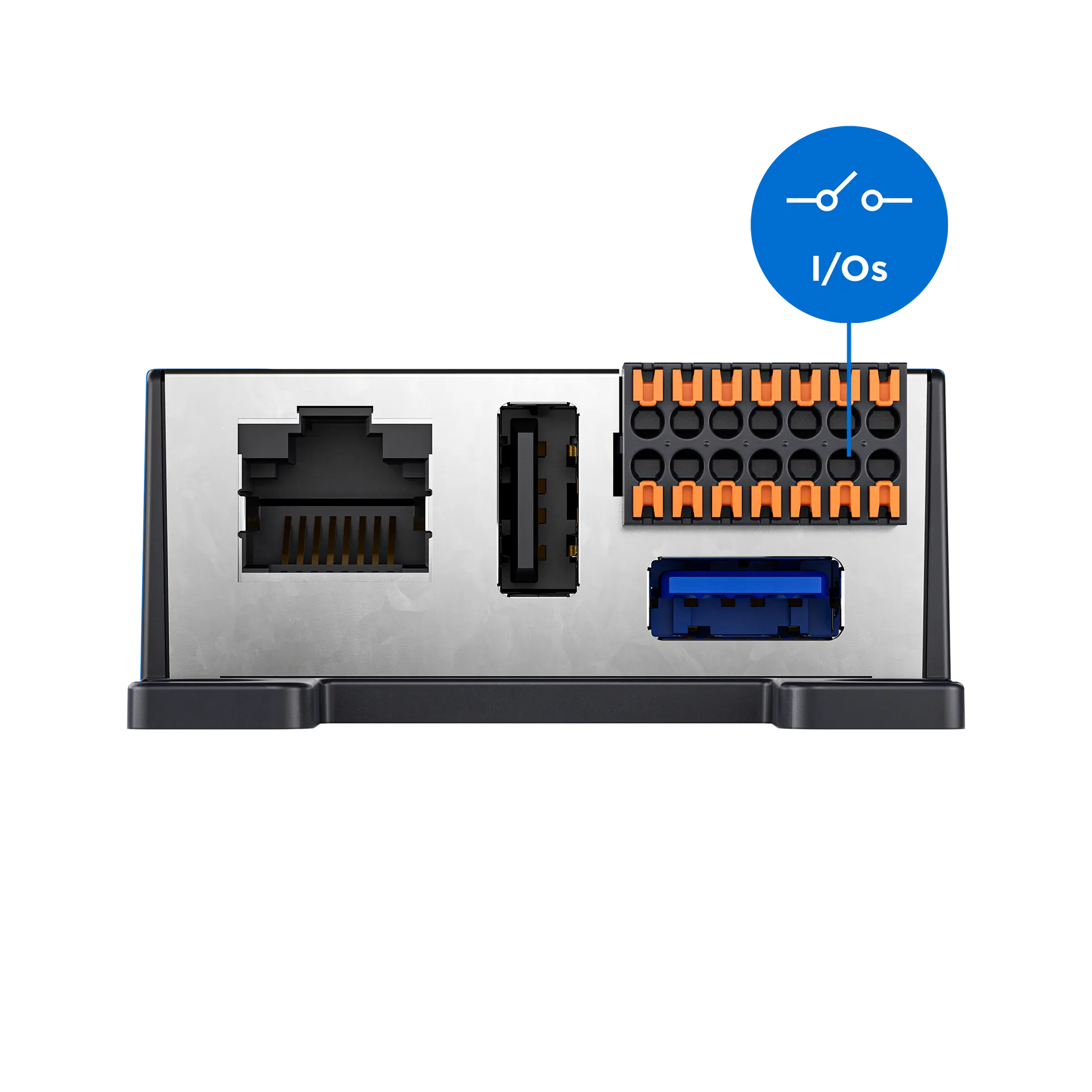

I/OS
Accessories
im3 + LSM + cm1 = Communication at it's best
LSM: A perfect fit
LSM is Commend’s unique loudspeaker module that fits perfectly for the im3. It can be space-savingly stacked with the im3 module and mounted together on the front panel. A detached installation is also possible.
cm1: the im3's perfect camera companion
cm1 is Commend’s offset mountable camera module that makes full use of the im3’s capabilities. It's perfect for help and info terminals as well as building access points. The cm1 comes with full SIP Audio/Video capabilities and secure data encryption to take flexibility to the max.
Key features
- Amazingly loud in combination with im3s' Smart Audio Amplifier
- Sound pressure level up to 98 dB (0.5 m) for perfect speech intelligibility
- Special membrane type for optimal sound quality
- A multifunctional LED (LED3) can be mounted together with the loudspeaker module to indicate call status and any other system status
Key features
- Fast, easy installation
- Flexible offset placement up to 3 m from im3 module, thanks to HS-Link connection
- Full SIP Video support (for use in combination with im3 SIP Audio)
- Secure data encryption in accordance with Commend “Privacy and Security by Design”
- Suitable for outdoor environments, thanks to high protection ratings (IK08, IP65) and unique operating temperature range up to 70°C (158°F)
- Extra-wide video angle (145° horizontal; 130° vertical)
- Resolution: 960p
- PoE support enables cable-saving power supply in combination with im3 Intercom module, external loudspeaker, etc.
